AX Project Playbook, Part 2 — Open-Source AI Integration Patterns for Existing Systems

The AX Project Playbook series provides a structured approach to integrating AI capabilities into enterprise systems. This series, consisting of five parts—Planning, Development, Tools & MCP, Guardrails, and Security, Governance & Operations—offers a comprehensive framework for System Integrators (SIs) navigating the complexities of AI adoption. This second installment focuses on the Development phase, specifically the design and build aspects of adding AI to existing systems using open-source components. Key deliverables for this phase include a detailed architecture design, API specifications with defined endpoint permissions, page specifications with associated permissions, finalized source code, and a robust evaluation pipeline.

AX Project Playbook — all parts

1. AX Project Playbook, Part 1 — Strategic AI Use Case Selection and Requirements Definition
2. AX Project Playbook, Part 2 — Open-Source AI Integration Patterns for Existing Systems (you are here)
3. AX Project Playbook, Part 3 — Securely Connecting AI Agents: A Playbook for MCP Tool Design, OAuth, and Defenses
4. AX Project Playbook, Part 4 — LLM Guardrails: Essential Design & Red-Teaming for Secure AI Deployments
5. AX Project Playbook, Part 5 — Essential AI Security Governance: LLMOps, Threat Modeling, and Regulatory Compliance for Go-Live

See the full series (hub) →

Architecture Pattern Comparison Table

Selecting the appropriate architecture pattern is crucial for effectively integrating AI into existing systems. The choice depends on the complexity of the task, the need for external data, and the desired level of model autonomy. The following table compares common patterns:

For integrating AI into existing systems, particularly for providing domain-specific answers or assisting with data interpretation, the Retrieval Augmented Generation (RAG) pattern offers an optimal balance between complexity and performance. It significantly mitigates hallucination risks and grounds LLM responses in verifiable enterprise data. The architecture presented subsequently will primarily leverage the RAG pattern.

Model Choice and Serving

Model Choice

The open-source LLM ecosystem offers diverse options. Key considerations include model size, performance, license, and community support. Prominent choices include:

• Mistral-7B/Mixtral-8x7B: Known for strong performance, efficiency, and permissive licenses (Apache 2.0 or specific Mistral licenses).
• Llama 2/3: Meta's models provide high quality, with usage restrictions for very large enterprises. It is imperative to review the specific license for Llama models carefully before deployment.
• Qwen: Alibaba Cloud's series offers competitive performance across various tasks, with distinct open-source licenses that must be verified.

For initial development and testing, smaller, efficient models like Mistral-7B are often suitable. It is critical to consult and adhere to the specific licenses associated with any chosen open-source model before deployment in a production environment.

LLM Serving

• Development: Ollama: For local development and rapid prototyping, Ollama provides a straightforward way to run various open-source models on consumer-grade hardware. It simplifies model downloading and local API exposure. While pgvector is detailed later in the RAG section for its role in vector storage, its initial setup alongside local LLMs like Ollama is often part of the development environment configuration.

• # Download and install Ollama from ollama.com
  # Pull a model, e.g., Mistral
  ollama pull mistral
  # Run a local PostgreSQL instance with pgvector (example using Docker)
  docker run --name some-postgres -e POSTGRES_PASSWORD=mysecretpassword -p 5432:5432 -d pgvector/pgvector


• Production: vLLM: For high-throughput, low-latency inference in production, vLLM is recommended. It optimizes LLM serving through techniques like PagedAttention, significantly improving throughput and reducing memory footprint. Deploying vLLM typically involves containerization and deployment on GPU-accelerated infrastructure within Kubernetes.

• # Example: vLLM Python serving (simplified)
  from vllm import LLM, SamplingParams
  llm = LLM(model="mistralai/Mistral-7B-Instruct-v0.2")
  sampling_params = SamplingParams(temperature=0.7, top_p=0.9, max_tokens=256)
  prompts = ["Explain the RAG architecture."]
  outputs = llm.generate(prompts, sampling_params)
  for output in outputs:
      prompt = output.prompt
      generated_text = output.outputs[0].text
      print(f"Prompt: {prompt!r}, Generated text: {generated_text!r}")


  This code snippet illustrates interaction with a vLLM server, which would typically be exposed via an API.

RAG Pipeline

A robust RAG pipeline is essential for grounding LLM responses in enterprise data. Key components include embeddings, vector storage, retrieval, reranking, and orchestration.

Embeddings and Vector Store

• Embeddings: BGE-M3: BGE-M3 (BAAI General Embedding) is a highly effective embedding model capable of handling multiple languages and mixed text/image inputs. It provides good performance for semantic similarity search.
• Vector Store: pgvector: Integrating pgvector with PostgreSQL allows direct storage and querying of vector embeddings alongside traditional relational data. This simplifies infrastructure by leveraging an existing database and enables powerful SQL-based filtering and joins.

Retrieval and Reranking

• Retrieval: Once documents are chunked and embedded into pgvector, retrieval involves querying the vector store to find the most semantically similar chunks to the user's input query.
• Reranking: bge-reranker: After initial retrieval, a reranker like bge-reranker can significantly improve the quality of retrieved documents. It re-evaluates the relevance of the top-k retrieved documents, ensuring that the most pertinent information is passed to the LLM, enhancing response accuracy and reducing noise.

Orchestration with LangGraph

LangGraph, built on LangChain, facilitates the creation of robust, stateful multi-actor applications with LLMs. It is ideal for orchestrating complex RAG flows, allowing for dynamic retrieval, conditional logic, and iterative refinement. A LangGraph-based RAG pipeline could involve:

• Ingestion: Document loading, chunking, embedding, storage in pgvector.
• Query Processing: User query embedding, initial retrieval from pgvector.
• Reranking: Applying bge-reranker to refine retrieved documents.
• Generation: Passing reranked documents and the original query to the LLM for response generation.
• Conditional Logic: Implementing steps like checking for relevance, determining if a tool call is needed, or looping for clarification.

# Pseudocode for a LangGraph RAG chain (simplified)
from langgraph.graph import StateGraph, START, END
# Define graph state and node functions
workflow = StateGraph(object) # Simplified state for example
workflow.add_node("retrieve", lambda state: {"documents": ["doc"]})
workflow.add_node("generate", lambda state: {"response": "answer"})
workflow.add_edge(START, "retrieve")
workflow.add_edge("retrieve", "generate")
workflow.add_edge("generate", END)
app = workflow.compile()

Structured Output with JSON Schema, Confidence and Rationale

To integrate LLM outputs effectively into existing systems, structured output is essential. This allows downstream systems to parse, validate, and act upon the AI's response programmatically. JSON schema is the preferred method for defining the expected output format, enforcing data types, and ensuring consistency.

Including confidence scores and a rationale for each AI verdict enhances transparency and trust. The confidence score (e.g., a float between 0.0 and 1.0) indicates the LLM's certainty in its response, while the rationale provides a brief explanation or supporting evidence. This structure is particularly valuable for the verdict API.

{
  "$schema": "http://json-schema.org/draft-07/schema#",
  "title": "AI Verdict Output",
  "type": "object",
  "properties": {
    "verdict": {
      "type": "string",
      "enum": ["RULE", "AGENT", "HYBRID", "UNKNOWN"],
      "description": "The final verdict type."
    },
    "decision": {
      "type": "string",
      "description": "The AI's decision or answer."
    },
    "confidence": {
      "type": "number",
      "format": "float",
      "minimum": 0.0,
      "maximum": 1.0,
      "description": "Confidence score of the decision."
    },
    "rationale": {
      "type": "string",
      "description": "Explanation or evidence supporting the decision."
    },
    "source_documents": {
      "type": "array",
      "items": {
        "type": "string"
      },
      "description": "List of source documents or references used."
    }
  },
  "required": ["verdict", "decision", "confidence", "rationale"]
}

For critical applications, a Rule-Engine Verdict Layer can augment or override LLM outputs. This can integrate a deterministic rule engine to enforce strict business rules or compliance policies, classifying verdicts as RULE (rule-driven), AGENT (LLM-driven), or HYBRID (combined approach).

Human Review Queue

Despite advancements in AI, human-in-the-loop (HITL) processes remain critical, especially in sensitive domains or for decisions with high impact. A human review queue serves as a fallback mechanism where AI outputs falling below a certain confidence threshold, or flagged for specific keywords, are routed for manual inspection and correction. This not only prevents errors but also provides valuable feedback for model fine-tuning and evaluation.

The design of the human review queue should include:

• A user interface for reviewers to quickly assess AI outputs and provide corrections.
• Defined workflows for escalation and resolution.
• Mechanisms to capture reviewer feedback for dataset improvement.

Evaluation

Continuous evaluation is vital for maintaining the performance and reliability of AI systems. A robust evaluation pipeline should integrate into the CI/CD process to detect regressions and monitor quality.

• Golden Set Creation: A curated dataset of input queries and their corresponding, human-validated ideal outputs. This set serves as the ground truth for evaluating AI performance. It should cover diverse scenarios, edge cases, and evolving business rules.
• Ragas for RAG Evaluation: Ragas is an open-source framework specifically designed to evaluate RAG pipelines. It measures metrics such as:
• Faithfulness: Measures how factual the generated answer is, based on the retrieved context.
• Answer Relevance: Assesses if the generated answer directly addresses the question.
• Context Relevance: Evaluates if the retrieved context is relevant to the question.
• Context Recall: Checks if all necessary information for the answer is present in the retrieved context.
• Promptfoo for Regression Testing: Integrating promptfoo into the CI pipeline allows for automated regression testing of LLM prompts and configurations. It can run a suite of tests against the golden set with every code change, ensuring that updates do not degrade performance or introduce new issues.

# Example of integrating promptfoo in CI
# Assuming promptfoo is installed and a config file (promptfoocfg.yaml) exists
# This command would be part of a CI/CD pipeline script
promptfoo eval -c promptfoocfg.yaml
# Example promptfoocfg.yaml structure (simplified)
events:
  - prompt: "Explain the RAG process."
    vars:
      context: "{{ retrieve_docs(input.question) }}"
    assert:
      - type: llm-rubric
        value: "The response accurately explains RAG."
        threshold: 4 # on a scale of 1-5

API and Page Permission Design

Integrating AI capabilities into existing applications requires careful design of API endpoints and user interface permissions to maintain security and control access. Adhere to the principle of least privilege.

• API Specification: Define new API endpoints for AI services (e.g., /api/v1/ai/query, /api/v1/ai/verdict). Each endpoint must specify authentication mechanisms (e.g., OAuth 2.0, API Keys) and authorization policies (e.g., Role-Based Access Control - RBAC). Clearly document input and output schemas, including the structured JSON outputs from the AI model.
• Endpoint Permissions: Implement granular permissions for each AI-powered API endpoint. For example, a user role might be permitted to query the AI, while an administrator role might have access to evaluation metrics or configuration endpoints.
• Page Specification with Permissions: For any new UI components or pages that interact with AI services (e.g., a chatbot interface, a verdict review queue), define corresponding page-level permissions. Ensure that only authorized users can view, interact with, or modify AI-generated content or configurations.

Next Steps

Building upon the foundational design and implementation of AI integration, the subsequent phase focuses on optimizing the development lifecycle, selecting appropriate tools, and establishing a robust Machine Learning Operations (MLOps) framework. This involves detailed planning for model deployment, monitoring, and iterative improvement.

Deliverable examples for this part

Below are example deliverables for this phase, based on the open-source AX lab. Adapt them to your organization. The full requirements workbook (Excel) is available on the AX Project Playbook hub.

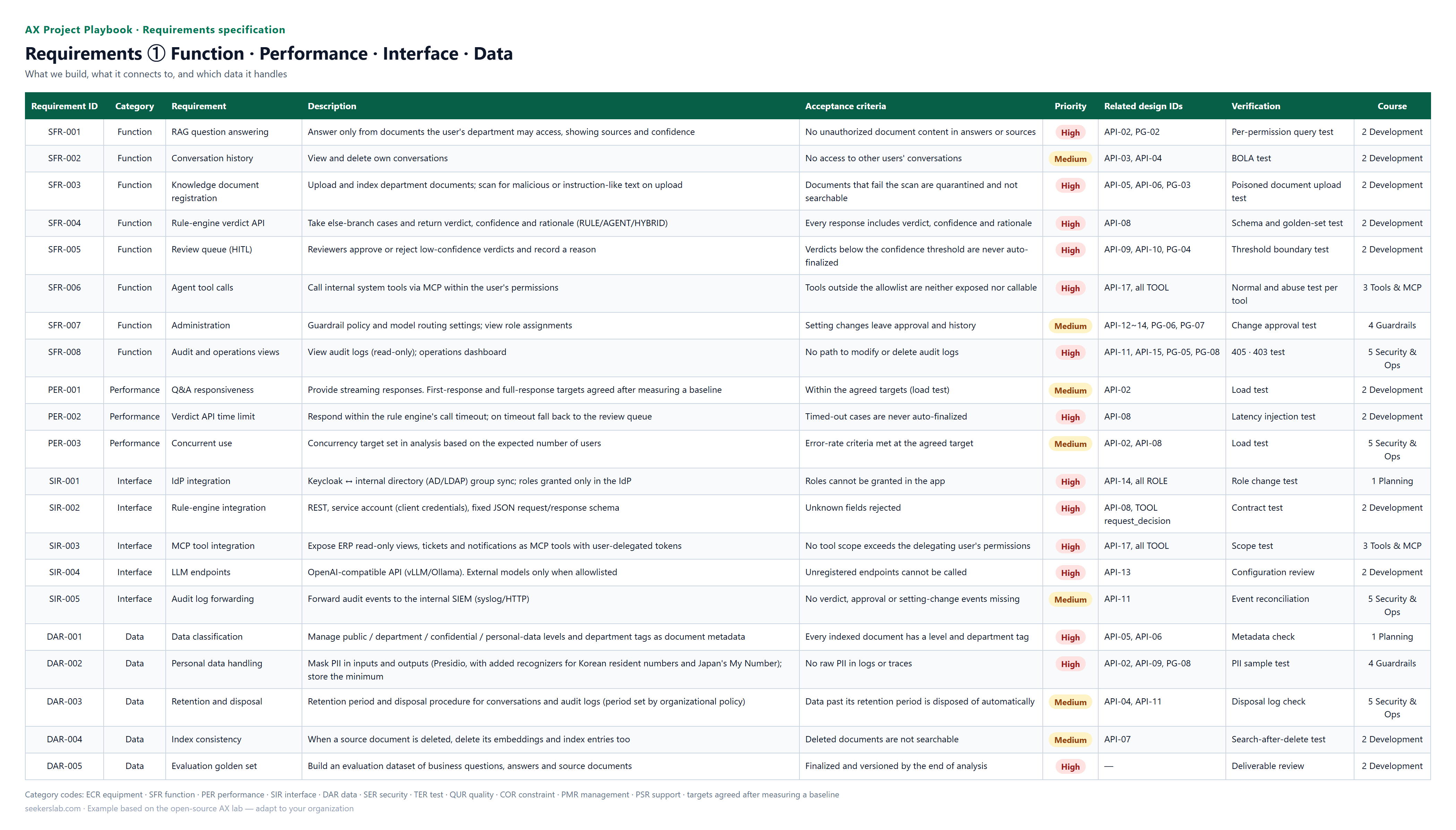

Requirements ① Function · Performance · Interface · Data — What we build, what it connects to, and which data it handles

View as a table: Requirements ① Function · Performance · Interface · Data

Requirement ID	Category	Requirement	Description	Acceptance criteria	Priority	Related design IDs	Verification	Course
SFR-001	Function	RAG question answering	Answer only from documents the user's department may access, showing sources and confidence	No unauthorized document content in answers or sources	High	API-02, PG-02	Per-permission query test	2 Development
SFR-002	Function	Conversation history	View and delete own conversations	No access to other users' conversations	Medium	API-03, API-04	BOLA test	2 Development
SFR-003	Function	Knowledge document registration	Upload and index department documents; scan for malicious or instruction-like text on upload	Documents that fail the scan are quarantined and not searchable	High	API-05, API-06, PG-03	Poisoned document upload test	2 Development
SFR-004	Function	Rule-engine verdict API	Take else-branch cases and return verdict, confidence and rationale (RULE/AGENT/HYBRID)	Every response includes verdict, confidence and rationale	High	API-08	Schema and golden-set test	2 Development
SFR-005	Function	Review queue (HITL)	Reviewers approve or reject low-confidence verdicts and record a reason	Verdicts below the confidence threshold are never auto-finalized	High	API-09, API-10, PG-04	Threshold boundary test	2 Development
SFR-006	Function	Agent tool calls	Call internal system tools via MCP within the user's permissions	Tools outside the allowlist are neither exposed nor callable	High	API-17, all TOOL	Normal and abuse test per tool	3 Tools & MCP
SFR-007	Function	Administration	Guardrail policy and model routing settings; view role assignments	Setting changes leave approval and history	Medium	API-12~14, PG-06, PG-07	Change approval test	4 Guardrails
SFR-008	Function	Audit and operations views	View audit logs (read-only); operations dashboard	No path to modify or delete audit logs	High	API-11, API-15, PG-05, PG-08	405 · 403 test	5 Security & Ops
PER-001	Performance	Q&A responsiveness	Provide streaming responses. First-response and full-response targets agreed after measuring a baseline	Within the agreed targets (load test)	Medium	API-02	Load test	2 Development
PER-002	Performance	Verdict API time limit	Respond within the rule engine's call timeout; on timeout fall back to the review queue	Timed-out cases are never auto-finalized	High	API-08	Latency injection test	2 Development
PER-003	Performance	Concurrent use	Concurrency target set in analysis based on the expected number of users	Error-rate criteria met at the agreed target	Medium	API-02, API-08	Load test	5 Security & Ops
SIR-001	Interface	IdP integration	Keycloak ↔ internal directory (AD/LDAP) group sync; roles granted only in the IdP	Roles cannot be granted in the app	High	API-14, all ROLE	Role change test	1 Planning
SIR-002	Interface	Rule-engine integration	REST, service account (client credentials), fixed JSON request/response schema	Unknown fields rejected	High	API-08, TOOL request_decision	Contract test	2 Development
SIR-003	Interface	MCP tool integration	Expose ERP read-only views, tickets and notifications as MCP tools with user-delegated tokens	No tool scope exceeds the delegating user's permissions	High	API-17, all TOOL	Scope test	3 Tools & MCP
SIR-004	Interface	LLM endpoints	OpenAI-compatible API (vLLM/Ollama). External models only when allowlisted	Unregistered endpoints cannot be called	High	API-13	Configuration review	2 Development
SIR-005	Interface	Audit log forwarding	Forward audit events to the internal SIEM (syslog/HTTP)	No verdict, approval or setting-change events missing	Medium	API-11	Event reconciliation	5 Security & Ops
DAR-001	Data	Data classification	Manage public / department / confidential / personal-data levels and department tags as document metadata	Every indexed document has a level and department tag	High	API-05, API-06	Metadata check	1 Planning
DAR-002	Data	Personal data handling	Mask PII in inputs and outputs (Presidio, with added recognizers for Korean resident numbers and Japan's My Number); store the minimum	No raw PII in logs or traces	High	API-02, API-09, PG-08	PII sample test	4 Guardrails
DAR-003	Data	Retention and disposal	Retention period and disposal procedure for conversations and audit logs (period set by organizational policy)	Data past its retention period is disposed of automatically	Medium	API-04, API-11	Disposal log check	5 Security & Ops
DAR-004	Data	Index consistency	When a source document is deleted, delete its embeddings and index entries too	Deleted documents are not searchable	Medium	API-07	Search-after-delete test	2 Development
DAR-005	Data	Evaluation golden set	Build an evaluation dataset of business questions, answers and source documents	Finalized and versioned by the end of analysis	High	—	Deliverable review	2 Development

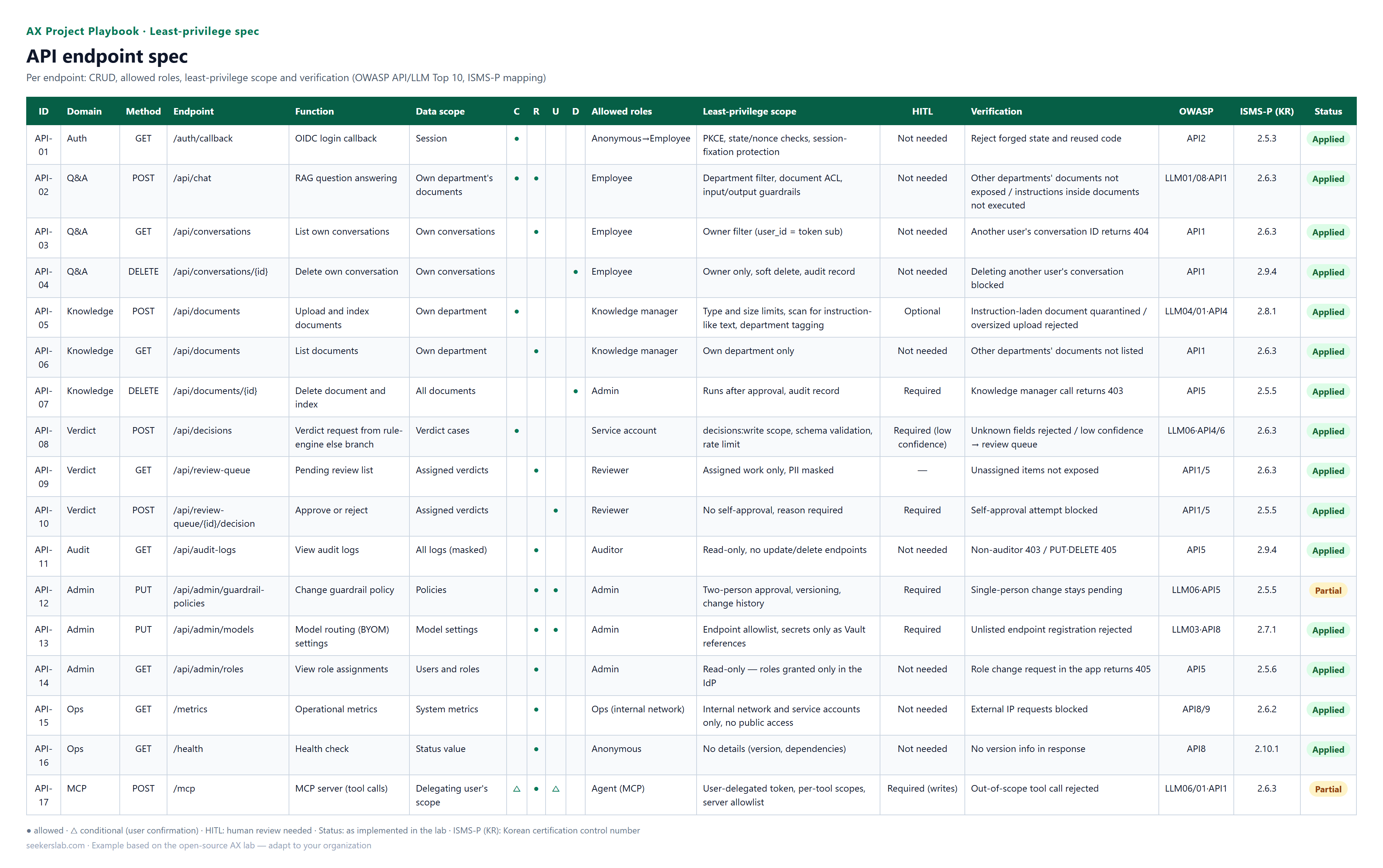

API endpoint spec — Per endpoint: CRUD, allowed roles, least-privilege scope and verification (OWASP API/LLM Top 10, ISMS-P mapping)

View as a table: API endpoint spec

ID	Domain	Method	Endpoint	Function	Data scope	C	R	U	D	Allowed roles	Least-privilege scope	HITL	Verification	OWASP	ISMS-P (KR)	Status
API-01	Auth	GET	/auth/callback	OIDC login callback	Session	●				Anonymous→Employee	PKCE, state/nonce checks, session-fixation protection	Not needed	Reject forged state and reused code	API2	2.5.3	Applied
API-02	Q&A	POST	/api/chat	RAG question answering	Own department's documents	●	●			Employee	Department filter, document ACL, input/output guardrails	Not needed	Other departments' documents not exposed / instructions inside documents not executed	LLM01/08·API1	2.6.3	Applied
API-03	Q&A	GET	/api/conversations	List own conversations	Own conversations		●			Employee	Owner filter (user_id = token sub)	Not needed	Another user's conversation ID returns 404	API1	2.6.3	Applied
API-04	Q&A	DELETE	/api/conversations/{id}	Delete own conversation	Own conversations				●	Employee	Owner only, soft delete, audit record	Not needed	Deleting another user's conversation blocked	API1	2.9.4	Applied
API-05	Knowledge	POST	/api/documents	Upload and index documents	Own department	●				Knowledge manager	Type and size limits, scan for instruction-like text, department tagging	Optional	Instruction-laden document quarantined / oversized upload rejected	LLM04/01·API4	2.8.1	Applied
API-06	Knowledge	GET	/api/documents	List documents	Own department		●			Knowledge manager	Own department only	Not needed	Other departments' documents not listed	API1	2.6.3	Applied
API-07	Knowledge	DELETE	/api/documents/{id}	Delete document and index	All documents				●	Admin	Runs after approval, audit record	Required	Knowledge manager call returns 403	API5	2.5.5	Applied
API-08	Verdict	POST	/api/decisions	Verdict request from rule-engine else branch	Verdict cases	●				Service account	decisions:write scope, schema validation, rate limit	Required (low confidence)	Unknown fields rejected / low confidence → review queue	LLM06·API4/6	2.6.3	Applied
API-09	Verdict	GET	/api/review-queue	Pending review list	Assigned verdicts		●			Reviewer	Assigned work only, PII masked	—	Unassigned items not exposed	API1/5	2.6.3	Applied
API-10	Verdict	POST	/api/review-queue/{id}/decision	Approve or reject	Assigned verdicts			●		Reviewer	No self-approval, reason required	Required	Self-approval attempt blocked	API1/5	2.5.5	Applied
API-11	Audit	GET	/api/audit-logs	View audit logs	All logs (masked)		●			Auditor	Read-only, no update/delete endpoints	Not needed	Non-auditor 403 / PUT·DELETE 405	API5	2.9.4	Applied
API-12	Admin	PUT	/api/admin/guardrail-policies	Change guardrail policy	Policies		●	●		Admin	Two-person approval, versioning, change history	Required	Single-person change stays pending	LLM06·API5	2.5.5	Partial
API-13	Admin	PUT	/api/admin/models	Model routing (BYOM) settings	Model settings		●	●		Admin	Endpoint allowlist, secrets only as Vault references	Required	Unlisted endpoint registration rejected	LLM03·API8	2.7.1	Applied
API-14	Admin	GET	/api/admin/roles	View role assignments	Users and roles		●			Admin	Read-only — roles granted only in the IdP	Not needed	Role change request in the app returns 405	API5	2.5.6	Applied
API-15	Ops	GET	/metrics	Operational metrics	System metrics		●			Ops (internal network)	Internal network and service accounts only, no public access	Not needed	External IP requests blocked	API8/9	2.6.2	Applied
API-16	Ops	GET	/health	Health check	Status value		●			Anonymous	No details (version, dependencies)	Not needed	No version info in response	API8	2.10.1	Applied
API-17	MCP	POST	/mcp	MCP server (tool calls)	Delegating user's scope	△	●	△		Agent (MCP)	User-delegated token, per-tool scopes, server allowlist	Required (writes)	Out-of-scope tool call rejected	LLM06/01·API1	2.6.3	Partial

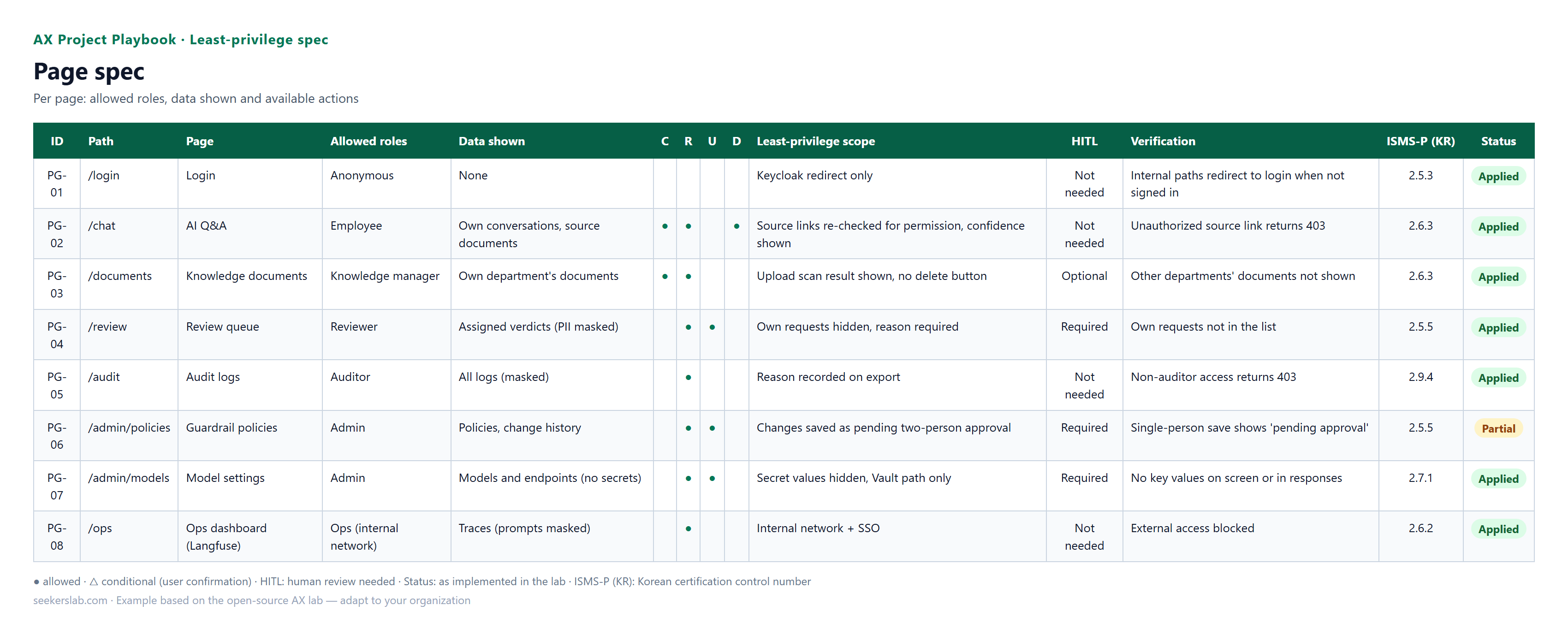

Page spec — Per page: allowed roles, data shown and available actions

View as a table: Page spec

ID	Path	Page	Allowed roles	Data shown	C	R	U	D	Least-privilege scope	HITL	Verification	ISMS-P (KR)	Status
PG-01	/login	Login	Anonymous	None					Keycloak redirect only	Not needed	Internal paths redirect to login when not signed in	2.5.3	Applied
PG-02	/chat	AI Q&A	Employee	Own conversations, source documents	●	●		●	Source links re-checked for permission, confidence shown	Not needed	Unauthorized source link returns 403	2.6.3	Applied
PG-03	/documents	Knowledge documents	Knowledge manager	Own department's documents	●	●			Upload scan result shown, no delete button	Optional	Other departments' documents not shown	2.6.3	Applied
PG-04	/review	Review queue	Reviewer	Assigned verdicts (PII masked)		●	●		Own requests hidden, reason required	Required	Own requests not in the list	2.5.5	Applied
PG-05	/audit	Audit logs	Auditor	All logs (masked)		●			Reason recorded on export	Not needed	Non-auditor access returns 403	2.9.4	Applied
PG-06	/admin/policies	Guardrail policies	Admin	Policies, change history		●	●		Changes saved as pending two-person approval	Required	Single-person save shows 'pending approval'	2.5.5	Partial
PG-07	/admin/models	Model settings	Admin	Models and endpoints (no secrets)		●	●		Secret values hidden, Vault path only	Required	No key values on screen or in responses	2.7.1	Applied
PG-08	/ops	Ops dashboard (Langfuse)	Ops (internal network)	Traces (prompts masked)		●			Internal network + SSO	Not needed	External access blocked	2.6.2	Applied

FAQ

1. What are the main benefits of using open-source LLMs?
   Open-source LLMs offer transparency, cost-effectiveness by avoiding vendor lock-in, and greater control over data privacy. They also foster community-driven innovation and allow for fine-tuning on proprietary datasets without sharing data externally.
2. How does RAG help reduce LLM hallucinations?
   RAG reduces hallucinations by grounding the LLM's responses in specific, retrieved facts from a trusted knowledge base. Instead of relying solely on its pre-trained general knowledge, the LLM uses provided context, making its answers more accurate and verifiable.
3. Why is an evaluation pipeline critical for AI integration?
   An evaluation pipeline is critical because it objectively measures the AI's performance, identifies regressions, and provides data-driven insights for continuous improvement. It ensures the AI system consistently meets quality, accuracy, and relevance standards over time.
4. What role does human-in-the-loop (HITL) play in AI systems?
   HITL processes enable human oversight and intervention in AI decision-making, particularly for high-stakes or ambiguous scenarios. This improves accuracy, builds trust, and provides invaluable feedback for model training and refinement, ensuring ethical and reliable AI operation.
5. What are the advantages of using pgvector for RAG?
   pgvector allows direct storage and querying of vector embeddings within a familiar PostgreSQL database. This simplifies infrastructure by avoiding separate vector databases, leverages existing PostgreSQL tooling, and enables powerful hybrid queries combining semantic search with relational filters.
